All-in-one Mini Waterjet

All-in-one Mini Waterjet

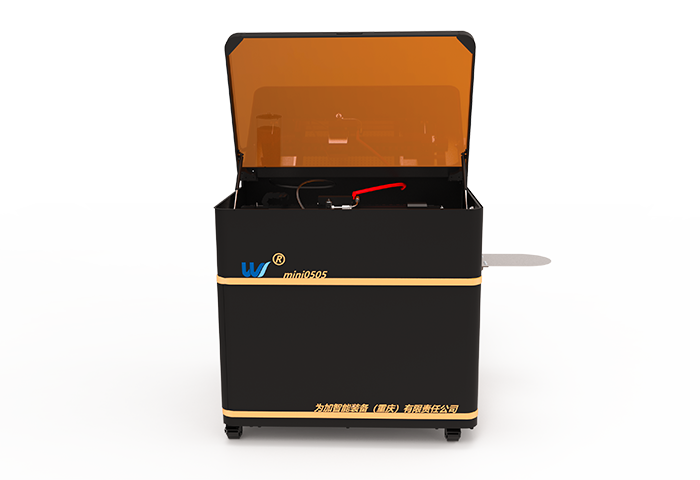

The ForPlus Mini Waterjet is a mobile and all-in-one waterjet cutting machine.It could be your entry level of high pressure waterjet cutting machines, also giving you flexibility to cut in limited workspace or relocate the machine to where is needed.with conventional 220V/380V AC power to perform rapid waterjet cutting at pressures ranging from 30000psi-55000psi (200-350MPa).

Request For Quote →

Exquisite Design/Powerful Performance

No installation required, easy to debug.

Configured with waterjet professional CNC software;

Any laptop with Window 10+ operating system can be used as the control system with an encryption dongle.

Configured with Different Waterjet Accessories

Minimal Noise Level

Operating noise ≤ 60dB, suitable for office, schools and laboratory environments.

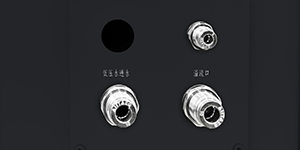

Unified Panel Access

220V/380V50HZ,The minimum power is 4.2KW.

Water Treatment System

Configure an embedded passivation water treatment system without the need for additional water purification equipment.

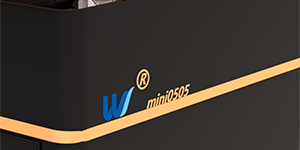

HAutomotive Chassis Grade Coating Technology

The position of the cutting head can be monitored in real time by a magnetic scale to correct cutting errors; or a high-definition camera or laser scanner can be used to automatically identify the contour of the workpiece and adjust the cutting path.

True All-in-One System

All sub-systems – high pressure pump, cutting platform, garnet feeding system, water treatment system, control unit etc. are integrated in one mobile system.

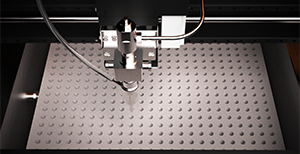

High Cutting Accuracy

Adopting a gantry structure, the cutting accuracy is high, with a cutting accuracy of ± 0.1mm..

Easy to operate

Cutting paths..

High Quality Accessories

All equipment accessories are made of high-quality components from top domestic and foreign brands..

Applications

The All-In-One MINI waterjet cutting machine is good for material testing, teaching, material research and prototyping.

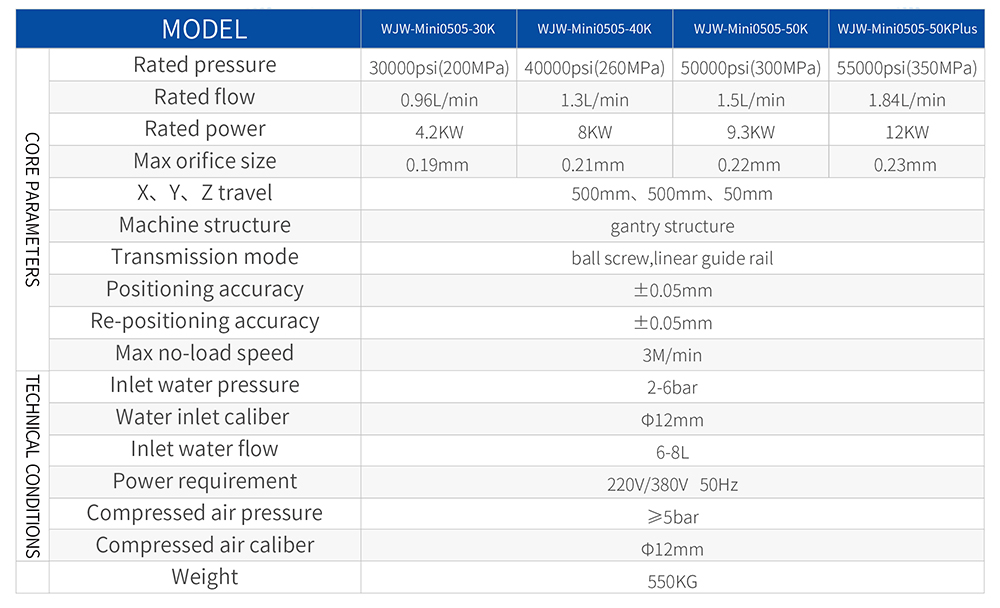

Specifications
